Four Columns Automatic Water Tank Manufacturing Machine 500ton Ss Water Tank Stamping Hydraulic Press

Brand Name : JIANZHONG

Model Number : Stamping machine-1

Certification : ISO 9001

Place of Origin : Guangdong, China

MOQ : 1 piece of machinery

Payment Terms : T/T, D/P

Supply Ability : 10000 tons per day

Delivery Time : 7 work days

Packaging Details : wooden pallets, container or as your request

Machine Type : Four-column Three-beam Hydraulic Press

System : Normal

Condition : New

Weight (T) : 15 T

Motor Power (kw) : 22 kw

Key Selling Points : Automatic

Warranty : 2 years

Applicable Industries : Food & Beverage Shops, Manufacturing Plant, Food & Beverage Factory, Food Shop, Restaurant, Printing Shops, Retail, Energy & Mining

Marketing Type : New Product

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 2 years

Core Components : Bearing, Motor, Pump, Engine

Slide Stroke (mm) : 500

Ejector Force (kN) : 300

Return Force (kN) : 5000 kN

Year : 2024

Voltage : 240V/380V

Product name : Four Column Hydraulic Press

Power Source : Hydraulic

Keyword : hydraulic press machine for automobile brake pad manufacturing

Function : Metal Processing

Application : Auto Parts

Type : Four Columns

Usage : Metal Press

Color : Costomized

Contact Now

Four columns automatic 500ton stainless steel water tank stamping hydraulic press machine for automobile brake pad
Overview
Product Description
Four Columns Automatic Water Tank Manufacturing Machine 500ton Ss Water Tank Stamping Hydraulic Press
Four Columns Automatic Water Tank Manufacturing Machine 500ton Ss Water Tank Stamping Hydraulic Press
In addition to the four-column hydraulic press, what other equipment does the stainless steel water tank production line need to be equipped with? It also includes equipment such as four-column hydraulic press, drawing die, ejector cylinder, bending machine and shearing machine to complete the composition of the stainless steel production line. The stainless steel water tank plate is pressed into templates of different specifications by the hydraulic press. The stainless steel water tank hydraulic press is generally punched into three sizes, namely 1mx1m, 1mx0.5m and 0.5mx0.5m three common sizes of stainless steel water tanks.
Specification
Project
315T
400T
500T
Slider stroke (mm)
600
800
600
Maximum opening height (mm)
1000
1250
1000
Table size (mm)
1000X1000
1260X1200
1500X1500
Down speed of empty range (mm / S)
100
100
120
Working speed (mm / S)
6-12
6-15
6-15
Return speed (mm / S)
60
80
80
Motor power( kw)
15
22
18.5*2
Oil pump displacement (ml / R)
63
80
63*2
Jacking force (t)
63
63
100
Ejection stroke (mm)
250
250
300
Approximate weight (t)
8
11
19
Details display
Four Columns Automatic Water Tank Manufacturing Machine 500ton Ss Water Tank Stamping Hydraulic Press
Make various forms of water tank boards according to your needs
production products
Four Columns Automatic Water Tank Manufacturing Machine 500ton Ss Water Tank Stamping Hydraulic Press
Four Columns Automatic Water Tank Manufacturing Machine 500ton Ss Water Tank Stamping Hydraulic Press
Four Columns Automatic Water Tank Manufacturing Machine 500ton Ss Water Tank Stamping Hydraulic Press

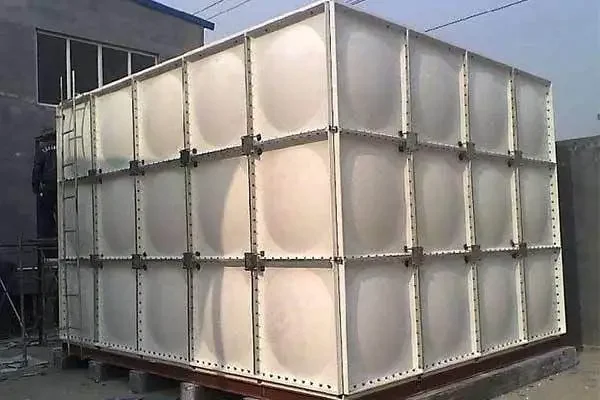

Finished product water tank board display
Packing & Delivery
Four Columns Automatic Water Tank Manufacturing Machine 500ton Ss Water Tank Stamping Hydraulic Press
Four Columns Automatic Water Tank Manufacturing Machine 500ton Ss Water Tank Stamping Hydraulic Press
Four Columns Automatic Water Tank Manufacturing Machine 500ton Ss Water Tank Stamping Hydraulic Press
All machines are packed in wood to ensure safety during transportation
Company Profile
Ten Years of Working Experience, Complete Types of Machinery and Equipment. The company always adhere to the production of sophisticated machinery, and strive to optimize the product structure, from parts processing to the machine factory, are one by one through strict control and inspection. We has an after-sales service team to provide satisfactory answers within 24 hours, and regular telephone call back and technical guidance. We warmly welcome new and old customers to visit and negotiate.
